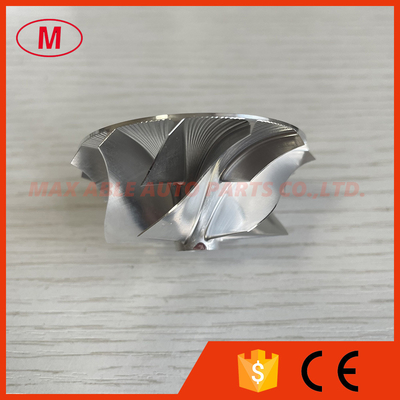

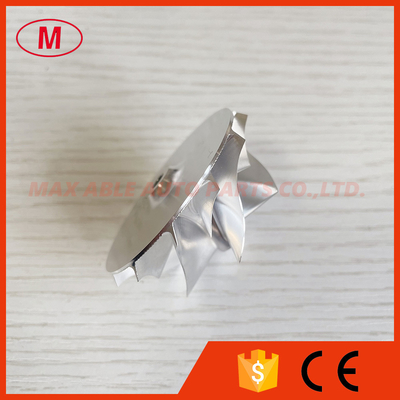

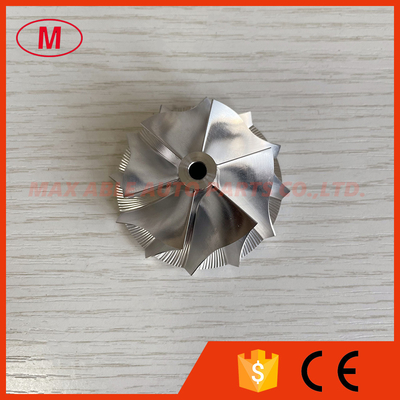

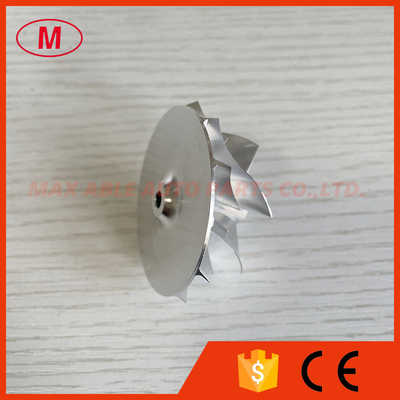

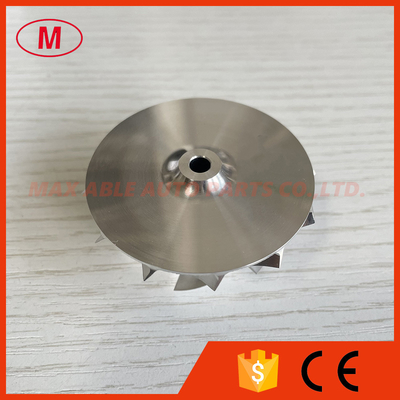

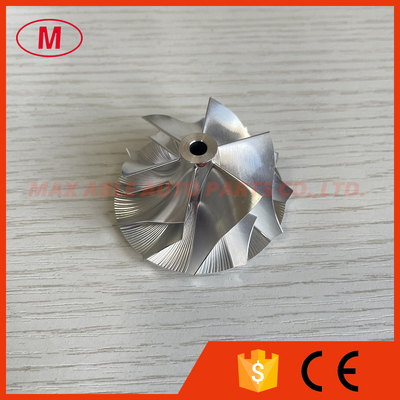

K04 reverse 40.80/51.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:K04 reverse

2.K04 reverse 40.80/51.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:10.00mm

inducer:40.80mm

Exduder:51.00mm

Tapered tip exducer:54.70mm

Tip height:4.21mm

Superback:2.60mm

Overall height:25.65mm

bore size :4.61mm

Bore type:through

Trailing Angle:60 degree

Cutback:2.2mm

Blades height:21.00mm

SP height Angle:-11.00

Splitter height:11.10mm

6+6 blades

reverse rotation

Tapered tip angle:30 degree

It is for custom size ,please check carefully before buyig.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

ALL the billet compressor wheels have been balanced.

The more models we also have.
